DVR EDIC-mini microSD A23

Miniature digital voice recorder Edic-Mini microSD A23 is designed for professional voice recording with subsequent unloading and listening to the recordings on a PC.

Recording of information in the voice recorder is carried out on a removable microSD flash-card. Recordings are saved on the card as standard .wav files that can be transferred to a PC using a card reader. And then, using an audio playback program (for example, Windows Media player), listen to them (the possibility of listening through an earpiece is excluded). Or you can, for example, recode to .mp3 and listen to it on an mp3 player.

Functionality:

Recording modes

The recorder has the ability to perform linear or circular recording. With linear recording, the number and duration of messages is limited only by the amount of free memory. The circular recording method allows you not to stop recording when the recorder runs out of free memory. The dictaphone just starts overwriting the old data with the new one. Thus, the memory will always contain the most recent data at the time the recording was stopped.

Timer recording

Recording can be done automatically, without user intervention. To do this, the recorder has 4 independent timers with a wide range of settings. For example, you can specify the start time of the recording and its duration for the daily recording.

Controlling the size of the recorded files

In the recorder settings, you can set the minimum file size (to exclude the recording of too short fragmentary information) and the maximum (to make it easier to find the desired fragment in the case of a long recording).

Built-in clock and calendar

Each recording made by the voice recorder has information about the time and date of the start of the recording.

Specifications:

Built-in microphone sensitivity 10-12 m;

The operating time of the recorder in recording mode (8 kHz, uncompressed) with a full battery charge .... up to 11 hours;

Recorded signal frequency band 100 Hz - 8 kHz;

Signal to noise ratio -61 dB;

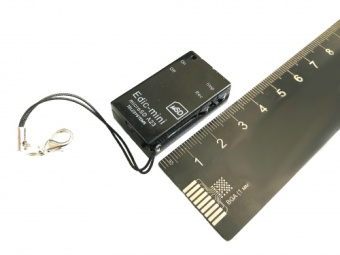

Overall dimensions 34x19x10 mm

Weight 20 g.
